M8200 Kubota Tractor 11'' Single Stage Clutch Kit Assembly

$325.00

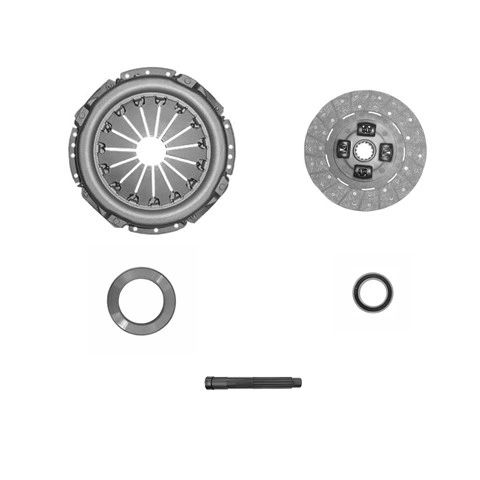

This Is a New 11’’ Diaphragm Single Stage Clutch Kit Assembly

         The Kit Comes With

11’’ Diaphragm Pressure Plate

11’’ Woven Clutch Disc with 1-9/16’’ 14 Spline Hub

With Release Bearing ID 2.166’’ OD 3.468’’ Thickness .866’’

Pilot Bearing ID 1.375’’ OD 2.440’’ Thickness 0.548’’

Alignment Tool Large Spline Size 1-9/16’’ 14 Spline Pilot Diameter 1.375’’
