M9000 Kubota Tractor 11-3/4'' Single Stage Clutch Kit Assembly

$390.00

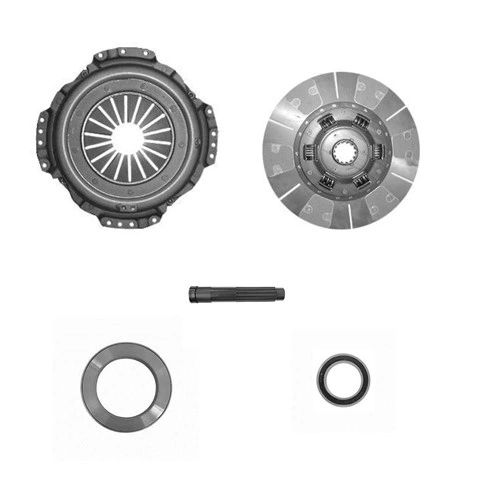

 This Is a New 11-3/4” Single Stage Clutch Kit Assembly

              The Kit Comes With

11-3/4” Diaphragm Pressure Plate Assembly

11-3/4” Six Pad Clutch Disc With 1-9/16” 14 Spline Spring Hub

Release Bearing OD 3.468” ID 2.166” Thickness .866”

Pilot Bearing OD 2.440” ID 1.375” Thickness 0.548”

Alignment Tool Is Large Spline Is 1-9/16” 14 Spline Pilot Diameter 1.378”
