Massey Ferguson 40E Tractor 12'' Dual Stage Clutch Kit Assembly

$395.00

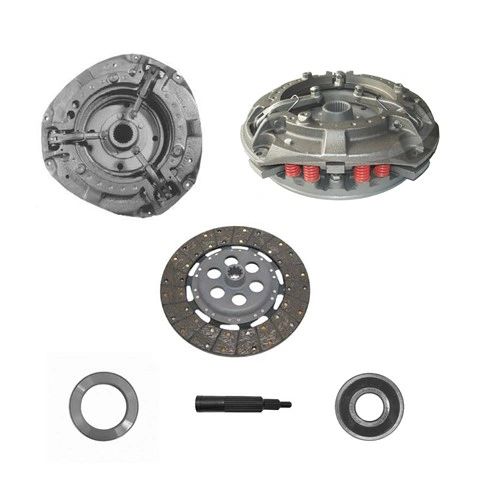

This Is a New 12” Dual Stage Clutch Kit Assembly the Clutch Kit Assembly

                            The Kit Come With

12” Pressure Plate With 3 Levers 12 Springs 1-5/8” 25 Spline Hub

12” Woven Clutch Disc With 1-1/8” 10 Spline Hub

Release Bearing OD 4.154” ID 2.500” Thickness .865”

Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”

Alignment Tool Large Spline 1-5/8” 25 Spline Small Spline 1-1/8” 10 Spline Pilot

Diameter 0.678”

Flywheel Step 1.560"-1.565"
