690 Massey Ferguson Tractor 12'' Split Torque Clutch Kit Assembly

$345.00

This Is A 12” Split Torque Clutch Kit Assembly

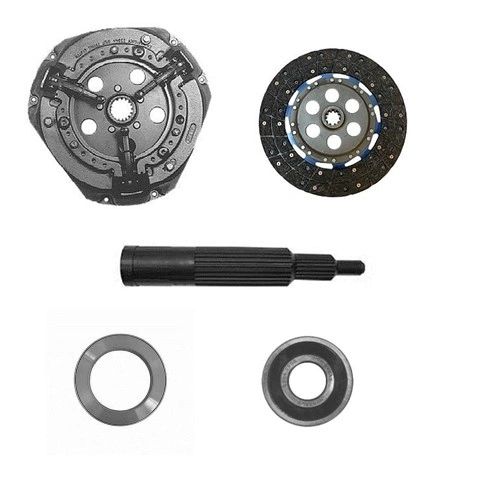

                  The Kit Comes With

12” Split Torque Pressure Plate With 3 Levers 12 Springs

12” 5 Woven Clutch Disc With 1-1/8” 10 Spline Hub

Release Bearing OD 4.154” ID 2.500” Thickness .865”

Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”

Alignment Tool Large Spline 1-5/8” 25 Spline Small Spline 1-1/8” 10 Spline

Pilot Diameter 0.678”

Flywheel Step 1.560”-1.565”
