MT John Deere Tractor 10" Single Stage Clutch Kit
$210.00

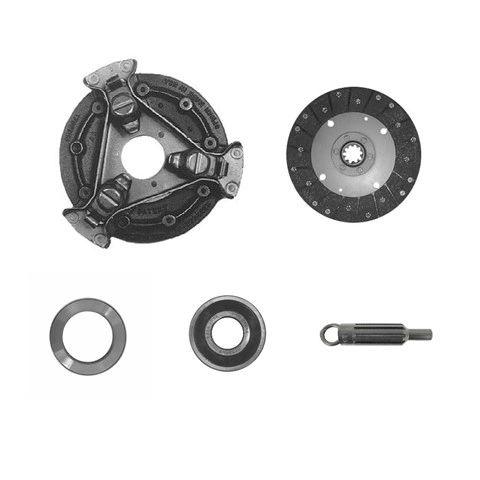

This Is A 10” Single Stage Clutch Kit Assembly
The Kit Comes With
10” Single Stage Pressure Plate With 3 Levers And 3 Springe
10” Woven Clutch Disc With 1-3/8” 10 Spline Hub
Release Bearing OD 3.750” ID 2.250” Thickness .750”
Pilot Bearing OD 1.375” ID .590” Thickness .430”
Pilot Bearing OD 1.5748” ID .6693” Thickness .4724”
Alignment Tool 10 Spline 1-3/8” Pilot Diameter 0.670”
