MT455 Challenger Tractor 13" Split Torque Clutch Kit Assembly
$520.00
This Is a New 13” Single Stage Clutch Kit Assembly

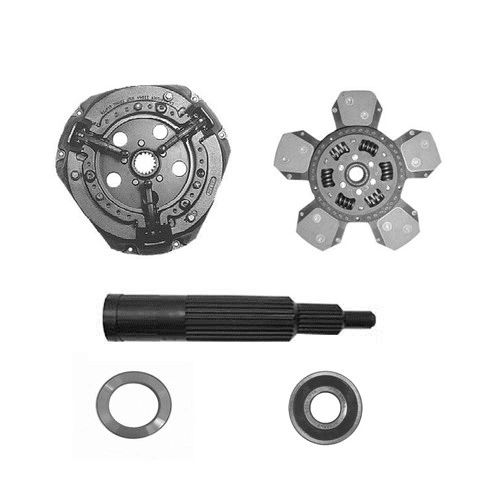

The Kit Comes With
13’’ Single Stage Pressure Plate with 3 Levers 1-5/8” 25 Spline Hub
13’’ 5 Pad Disc with 1-1/8’’ 21 Spline Hub
Release Bearing OD 4.154’’ ID 2.500’” Thickness .865’’
Pilot Bearing OD 1.5748’’ ID .6693’’ Thickness .4724’’
Alignment Tool Large Spline 1-5/8” 25 Spline
Small Spline 1-1/8” 21 Spline Pilot Diameter 0.670”
This Kit Does Not Come with Constant Running Release Bearing
Flywheel Step .130
