MX4700H Kubota Tractor 9-1/2" Single Stage Clutch Kit Assembly
$210.00
This Is a New 9-1/2” Single Stage Clutch Kit Assembly

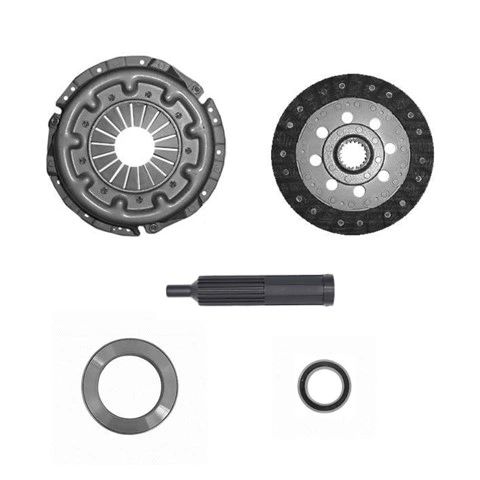

The Kit Comes With
9-1/2’’ Single Stage Diaphragm Pressure Plate
9-1/2’’ Woven Clutch Disc With 1-3/8’’ 19 Spline Hub
Release Bearing OD 3.468” ID 2.166” Thickness .866”
Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”
Alignment Tool Large Spline 1-3/8” 19 Spline
