New Holland Boomer 2030 Tractor 9" Single Stage Clutch Kit

$175.00

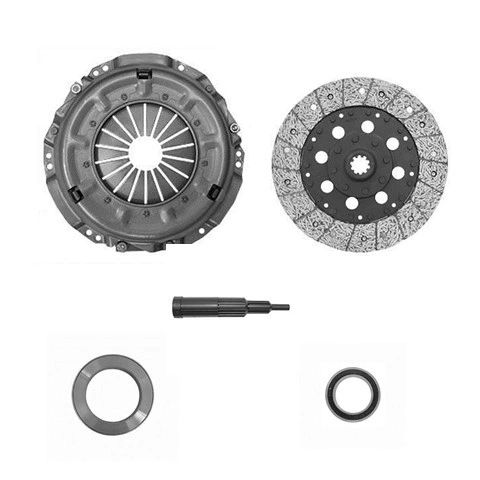

This Is a New 9” Single Stage Clutch Kit Assembly

                   The Kit Comes With

9” Diaphragm Pressure Plate

9” Woven Clutch Disc With 15/16” 10 Spline Hub

Release Bearing OD 2.90” ID 1.771” Thickness .700”

Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”

Alignment Tool Large Spline 1-3/8” 19 Spline

Small Spline 15/16” 10 Spline Pilot Diameter 0.470”
