R27706KN 11" Dual Stage Clutch Kit Assembly

This Is a New 11” Dual Stage Clutch Kit Assembly

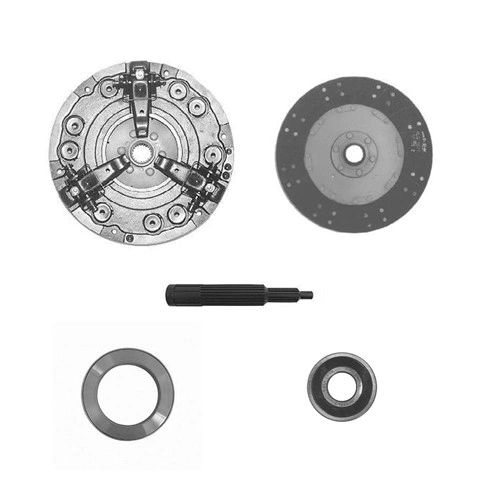

            The Kit Comes With

11” Dual Stage Pressure Plate With 3 Levers 9 Springs With 1-1/2” 23 Spline Hub With Flywheel Step 2.200”-2.210”

11” Woven Clutch Disc With 1’’ 15 Spline Solid Hub

Release Bearing OD 3.375” ID 2.250’’ Thickness 0.750’’

Pilot Bearing OD 1.375” ID .590’’ Thickness .430’’

Alignment Tool Large Spline 1-1/2” 23 Spline Small Spline 1” 15 Spline Pilot Diameter 0.591”
