T2220 New Holland Compact Tractor 9" Single Stage Clutch Kit
$175.00

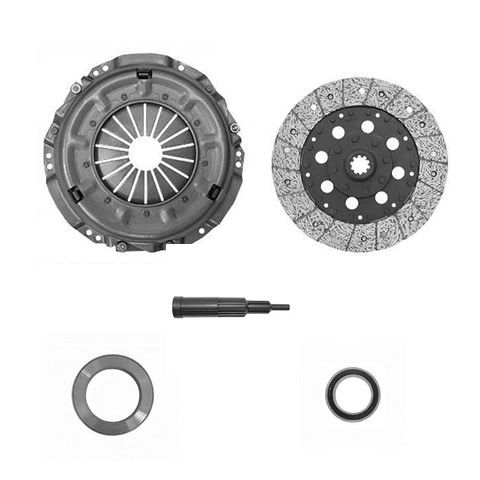

This Is a New 9” Single Stage Clutch Kit Assembly
The Kit Comes With
9” Diaphragm Pressure Plate
9” Woven Clutch Disc With 15/16” 10 Spline Hub
Release Bearing OD 2.90” ID 1.771” Thickness .700”
Pilot Bearing OD 1.102” ID 0.475” Thickness 0.313”
Alignment Tool Large Spline 1-3/8” 19 Spline
Small Spline 15/16” 10 Spline Pilot Diameter 0.470”
