T4030 New Holland Tractor 11" Dual Stage Clutch Kit

This Is a New 11” Dual Stage Clutch Kit Assembly

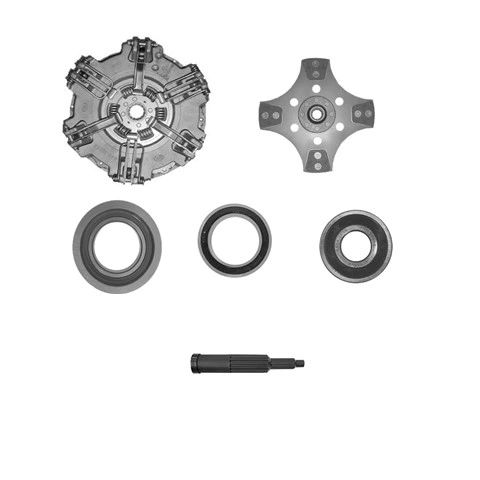

                    The Kit Comes With

11” Dual Stage Pressure Plate With 6 Levers

With 11’’ X 1-9/16’’ 14 Spline Hub With 6 Pads Engine Disc

11’’ X 15/16’’ 10 Spline 4 Pad Solid PTO Clutch Disc

Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’

Release Bearing with Out Collar OD 3.147” ID 1.968’’ Thickness .620’’

PTO Release Bearing OD 4.525” ID 2.952’’ Thickness 0.785’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Alignment Tool Large Spline 1-9/16’’ 14 Spline

Small Spline 1’’ 10 Spline Pilot Diameter 0.669’’

Flywheel Step .020”
