T4.75 New Holland Tractor 11" Dual Stage Clutch Kit Assembly

This Is a New 11” Dual Stage Clutch Kit Assembly

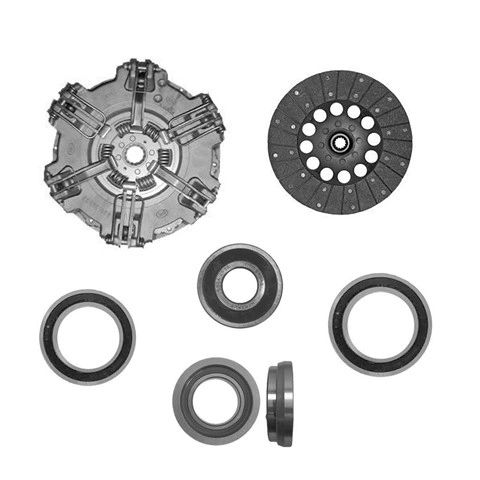

                    The Kit Comes With

11” Dual Stage Pressure Plate With 6 Levers With 11’’ X 1-9/16’’ 14 Spline Hub With 6 Pads Engine Disc

11’’ Woven Clutch Disc with 7/8’’ 13 Spline Hub

Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’

Release Bearing OD 3.147” ID 1.968’’ Thickness .620’’

Release Bearing OD 3.936” ID 2.557’’ Thickness 0.704’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Flywheel Step .079”
