T5060 New Holland Tractor 12-1/4'' Dual Stage Clutch Kit Assembly

This Is a New 12-1/4’’ Dual Stage Clutch Kit Assembly

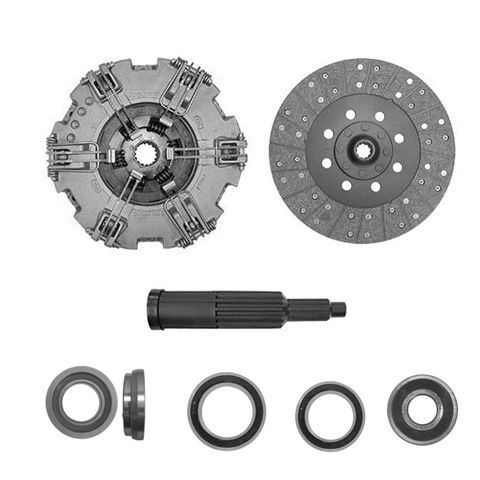

         The Kit Comes With

12-1/4’’ Dual Stage Pressure Plate with 6 Lever with a 1-3/4’’ 16 Spline Hub

12-1/4’’ Woven Disc With 15/16’’ 10 Spline Hub

Release Bearing with collar OD 3.550’’ ID 1.968’’Thickness .845’’

Release Bearing without collar OD 3.147’’ ID 1.968’’Thickness .620’’

PTO Bearing OD 4.330’’ ID 2.758’’ OD Thickness 0.785’’

Pilot Bearing OD 1.850’’ ID .669’’ OD Thickness 0.550’’

Flywheel Step Specification (.018")
