TC31 New Holland Tractor 9" Dual Stage Clutch Kit Assembly

This Is a New 9” Dual Stage Clutch Kit Assembly

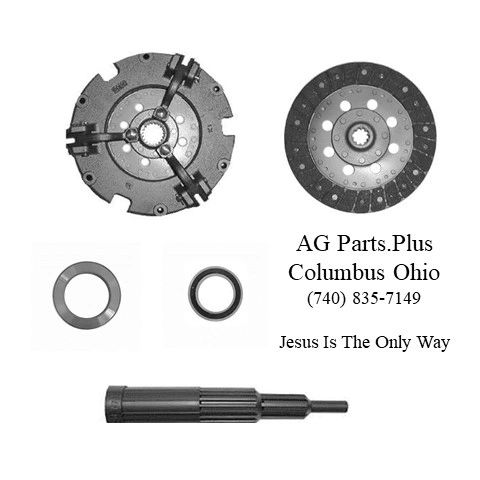

         The Kit Comes With

9’’ Dual Stage Clutch Kit 1-3/8’’ Hub 19 Spline

9’’ Woven Disc 15/16’’ Hub 10 Spline

Release Bearing OD 3.450’’ ID 2.164’” Thickness .765’’

Pilot Bearing OD1.102’’ ID 0.475’’ Thickness 0.313’’

Alignment Tool Large Spline 1-3/8” 19 Spline

Small Spline 15/16” 10 Spline Pilot Diameter 0.470”
