TC45DA New Holland Tractor 10-1/4" Heavy Duty Clutch Kit Assembly
$225.00
This Is a New 10-1/4’’ Single Stage Clutch Kit Assembly

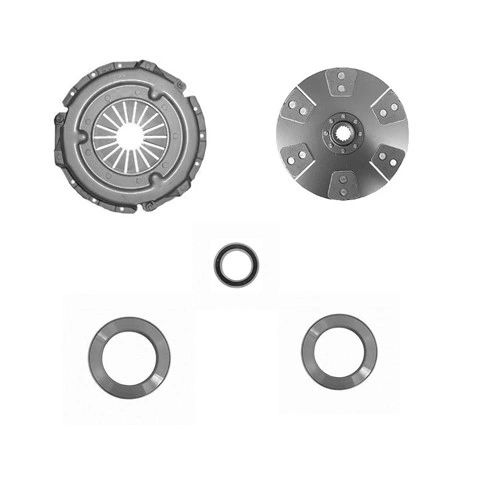

The Kit Comes With
10-1/4’’ Diaphragm Pressure Plate
10-1/4’’ 6 Pad Clutch Disc with 1-3/16’’ 16 Spline Hub
Release Bearing OD 2.900’’ ID 1.771” Thickness .700’’
Release Bearing OD 3.468’’ ID 2.166” Thickness .866’’
Pilot Bearing OD 1.102’’ ID 0.475” Thickness 0.313’’
