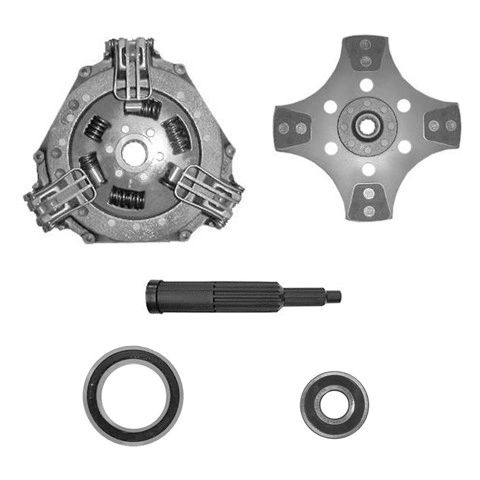

TD5030 New Holland Tractor 11" Powershift Clutch Kit Assembly

This Is a New 11” Powershift Clutch Kit Assembly

                    The Kit Comes With

11” Pressure Plate With 3 Levers With 1-9/16’’ 14 Spline Hub

11’’ 4 Pad PTO Clutch Disc With 15/16’’ 10 Spline Hub

PTO Release Bearing OD 4.525” ID 2.952’’ Thickness 0.785’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Alignment Tool Large Spline 1-9/16’’ 14 Spline

Small Spline 1’’ 10 Spline Pilot Diameter 0.669’’

Flywheel Step .020”
