TN60DA New Holland Tractor 11" Powershift Clutch Kit Assembly

This Is a New 11” Powershift Clutch Kit Assembly

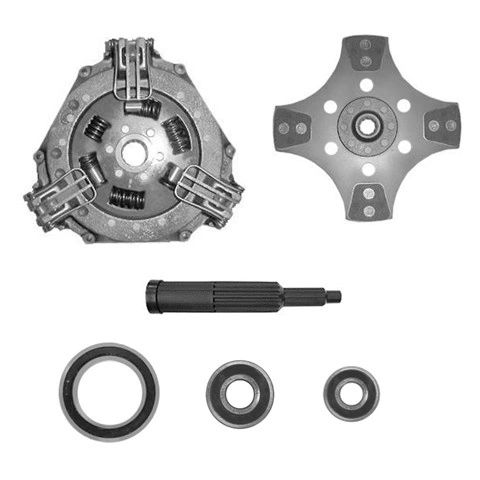

                    The Kit Comes With

11” Pressure Plate With 3 Levers With 1-9/16’’ 14 Spline Hub

11’’ 4 Pad PTO Clutch Disc With 15/16’’ 10 Spline Hub

PTO Release Bearing OD 4.525” ID 2.952’’ Thickness 0.785’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Pilot Bearing OD 1.5748” ID .6693’’ Thickness .4724’’

Alignment Tool Large Spline 1-9/16’ 14 Spline.

Small Spline 1’’ 10 Spline Pilot Diameter 0.669’’

Flywheel Step .020”
