TO20 Massey Ferguson 9" Single Stage Clutch Kit

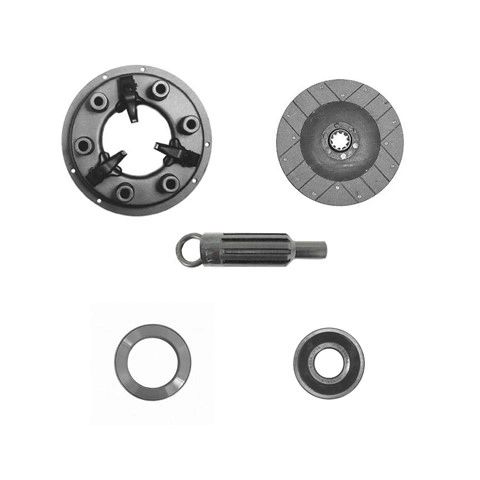

This Is a New 9” Single Stage Clutch Kit Assembly

               The Kit Comes With

9” Single Stage Pressure Plate With 3 Levers And 6 Springs

9” Woven Clutch Disc With 1-3/8” 10 Spline Spring Hub

Release Bearing OD 3.500” ID 2.062” Thickness .750”

Pilot Bearing OD 1.5748" ID .6693" Thickness .4724"

Alignment Tool Large Spline 1-3/8’ X 10 Pilot Spline Diameter 0.670”
