TS100 New Holland Tractor 13" Single Stage Clutch Kit Assembly With Non Synchro Transmission With Woven Clutch Disc

$380.00

This Is a 13” Single Stage Clutch Kit Assembly

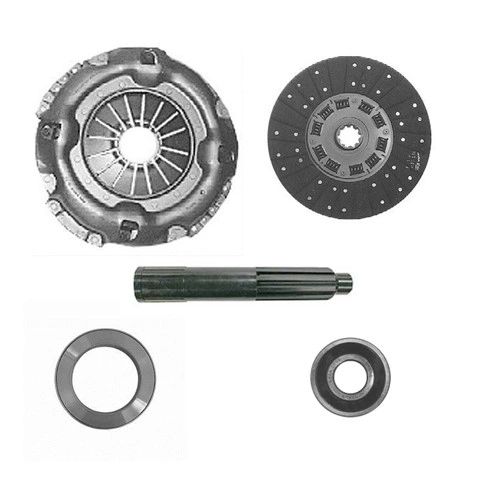

                   The Kit Comes With

13” Single Stage Diaphragm Pressure Plate

13” Woven Clutch Disc With 1-3/4” 10 Spline Hub

Release Bearing OD 4.070” ID 2.499” Thickness .870”

Pilot Bearing OD 1.677” ID 1.440” Thickness .590”

Alignment Tool Large Spline 1-3/4” 10

Pilot Diameter 1.400”

Flywheel Step Flat
