TW5 Ford Tractor 13'' Single Stage Clutch Kit Assembly

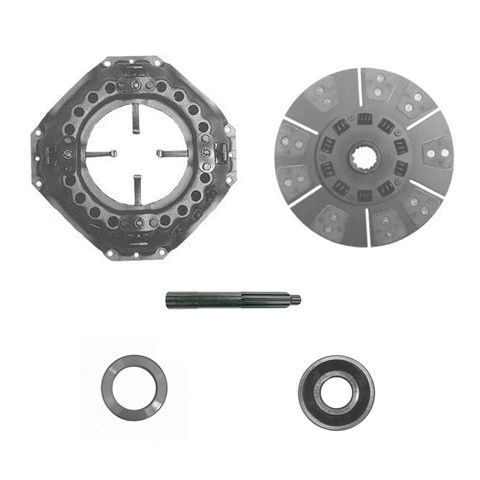

            The Kit Comes With

13” Pressure Plate With 4 Levers 16 Springs

13” Clutch Disc With 1-3/4’’ 10 Spline Spring Hub With 9 Pads

Release Bearing OD 4.070” ID 2.499’’ Thickness .870’’

Pilot Bearing OD 2.677” ID 1.440’’ Thickness .590’’

Alignment Tool Large Spline 1-3/4” 10 Spline Pilot Diameter 1.400”
