Workmaster 75 New Holland Tractor 11" Dual Stage Clutch Kit

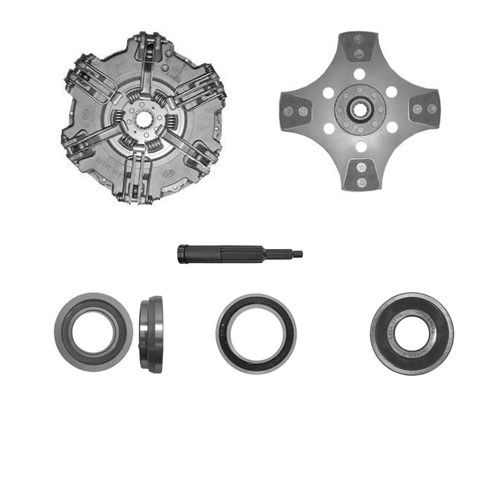

This Is a New 11” Dual Stage Clutch Kit Assembly

                    The Kit Comes With

11” Dual Stage Pressure Plate With 6 Levers With 11’’ X 1-9/16’’ 14 Spline Hub With 6 Pads Engine Disc

11’’ 4 Pad Clutch Disc with 15/16’’ 10 Spline Hub

Release Bearing with Collar OD 3.550” ID 1.968’’ Thickness .845’’

PTO Release Bearing OD 4.330” ID 2.758’’ Thickness 0.785’’

Pilot Bearing OD 1.850” ID .669’’ Thickness 0.550’’

Alignment Tool Large Spline 1-9/16’’ 14 Spline

Small Spline 1’’ 10 Spline Pilot Diameter 0.669’’

Flywheel Step .079”
