XR4046 LS Tractor 11" SINGLE Stage Clutch Kit Assembly

This Is a New 11’’ Single Stage Clutch Kit Assembly

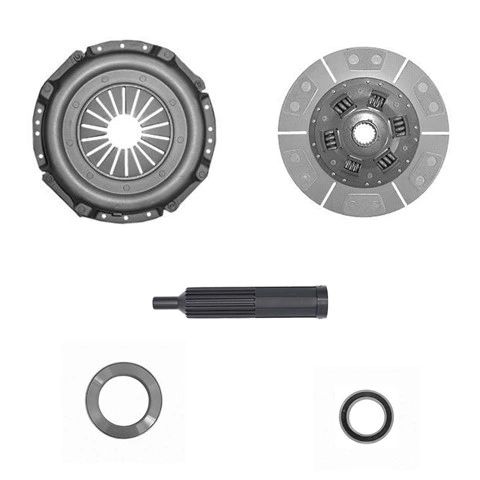

                  The Kit Comes With

11’’ Diaphragm Pressure Plate

11’’ Clutch Disc with Six Pads 1-3/8’’ 19 Spline Hub

Release Bearing OD 3.468’’ ID 2.166” Thickness .866’’

Pilot Bearing OD 1.250’’ ID 0.059” Thickness 0.350’’

Alignment Tool Large Spline 1-3/8” -19 Tooth Spline

Pilot Diameter 0.059”

Flat Flywheel Step

Some Tractor Models Do Not Require Pilot Bearing
